Vertical Packaging Machinery Header
Technology & Machinery

Vertical Form-Fill-Seal MACHINES

Efficient VFFS machinery for various products, delivering accurate dosing, secure sealing, and reliable production performance.

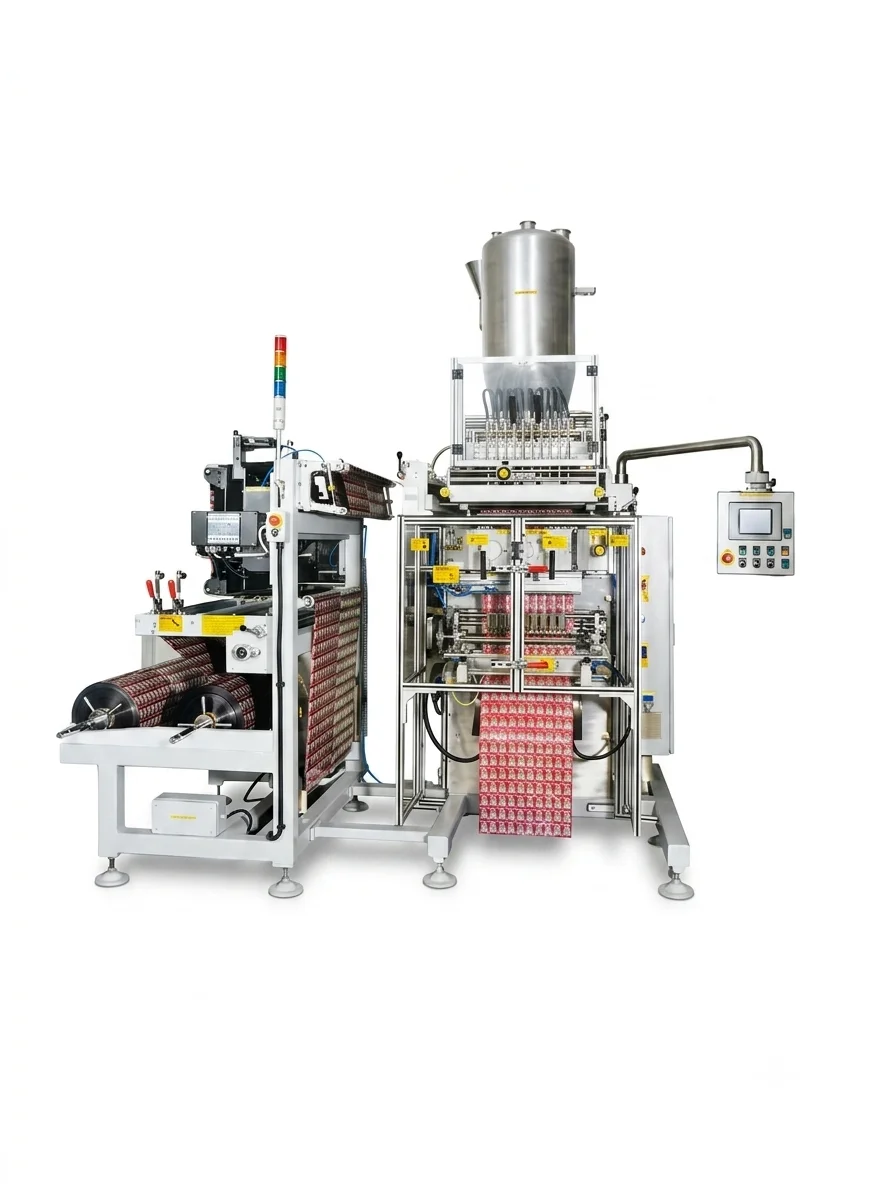

BellaPack Official Vertical Packaging Machine
VFFS SERIESReliable VFFS machinery for diverse industries.

VFFS TECHNOLOGY

Vertical Packaging Machines Solutions

At BellaPack, we provide advanced Vertical Form-Fill-Seal (VFFS) machinery for powders, granules, and different products. Our machines combine accurate dosing, secure sealing, and reliable automation to deliver efficient and consistent packaging performance. With flexible bag formats, user-friendly controls, and durable industrial construction, BellaPack VFFS machines help manufacturers achieve reliable production operations across a wide range of packaging applications.

VFFS Overview

  • Provision for Two Rolls on unwind
  • Sealers are both end supported
  • End roll detection synchronized with PLC & Filling
  • Provision for batch cutting & counting
  • Temperature Control and Heater Failure Indication is through PLC hence, eliminating the need for temperature controller
  • Paper break detection sensor
  • Joint detection sensor (optional)
  • Hopper level controller

Technical Specifications

Machine Details

Sealing Style
4 Side Seal
Speed
70 Strokes / minute maximum (Depends upon the type of product & quantity to be filled)
No. of Tracks
Depends upon the width of the pouch
Laminate Specification
Width – 1000 mm max. • Roll Dia – 600mm. max. • Reel Core I.D.- 150/76 mm
Packing Material
Laminates with one side heat sealable
Filling Capacity
1ml - 300ml
Product To Be Packed
Liquid / Paste within a dosable viscosity range
Sealing Drives
Vertical – Servo Driven • Horizontal – Servo Driven
Filling Mechanism
Piston Filler
Perforation and Cutting
As per customer requirement
Laminate Roll Unwind
Motor driven – Bonfiglioli Geared Motor
Laminate Draw Off System
PLC based Servo Driven
Control
Through Touch Screen Panel (HMI)
Laminate Tracking System
E+L web aligner – Digital
Main Control Panel
Air cooled panel – BCH make or Rittal
Contact Parts
SS 316 L
Indirect Contact Parts
SS 304 / 316
Batch Cutting
Can be programmed through PLC
Mat Format
In built feature of the Machine
Electrical Spec.
Main Motor – 2.2 KW, 3 Phase, 415 V • Connected load – 14 Kw • Consumption – 11 Kw
PLC controlled Operations
RTD module with PLC for Temperature controllers
Layout Dimensions
Length - 3200 mm • Width – 2600 mm • Height – 2100 mm
Machine Weight
Net Weight – 3500 kgs • Gross weight – 4000 kgs
Compressed Air
Operating Pressure – 5 Bar • Consumption – 3 CFM
Pneumatics
FESTO or equivalent
Machine Efficiency
90%*
Scrap Rate
Less than 2%*
Machine Colour
Shell Grey – Powder coated
Weight Variation
Within +/- 1%** of the filled quantity

* Depends upon the type of product, density, and flow characteristics.
** Under optimal testing conditions.
